DV 500 SILICA BLANKET/ FIBERGLASS NEEDLED MAT/ PP GLASS FIBER FELT
DV 500 ECO-FRIENDLY SILICA BLANKET FOR EXHAUST AND INDUSTRIAL EQUIPMENT INSULATION
PARK DV 500 Silica Blanket is a new generation Silica mat with high-performance Silica fibers for excellent Thermal and Acoustic properties at high temperatures. DV 500 Silica Mat is totally eco-friendly with No Asbestos, Incombustible, and contains No Organic or Binders.
Our unique Silica blanket is made up of accurately chopped fiber length mechanically bonded by needle punch processing. It has no additional binders to ensure high efficiency and high-temperature insulation and excellent sound absorption with various applications.
The standard thickness needled mat is from 1/8”, 1/4”, 1/2”, 1”, and withstand temperature up to 15000 F. Kindly request other specifications.
The PP glass fiber felt is easy to handle, allows cutting into the desired shape and form. DV 500 Silica Mat has many applications, primarily used as a preformed pipe for the exhaust of automotive and motorcycle, insulation jacket, insulation pipe for petrochemical, energy-saving industries, and many others.
The high-temperature PP fiberglass mat/felt can be processed into preformed pipes, insulation pipes, die-cut piece, laminated with Aluminum foil, coated with fabric, self-adhesive, etc. with various components for heat insulation and acoustic reducing purpose.
APPLICATIONS
- Catalytic Converters

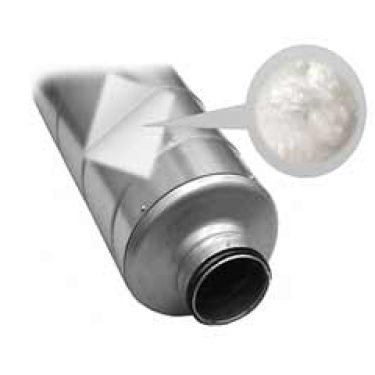

- Muffler Insulation
- Heat Shields
- Acoustic Insulations
- Furnace & Boiler Linings
- Heat And Acoustic Insulation
Looking for DV 500 K SILICA BLANKET?
Fill the form and send us the message, we shall get back to you within 2 business days.
TYPICAL PROPERTIES
- Thickness – 1/8”,1/4”,1/2”,1”
- Roll Width – 24 – 60 Inches
- Melting Temperature – 1523o F
- Withstand Temperature Upto 1500o F
- Zero Flame And Zero Smoke Index
- Non-Respirable 9 Micron Fiber
THERMAL CONDUCTIVITY AND ACOUSTIC
THERMAL CONDUCTIVITY (K –FACTOR )
| Temp | PARK DV 500 K |
|---|---|
| 3000 F | 0.350 |
| 5000 F | 0.480 |
| 7000 F | 0.640 |
| 9000 F | 0.780 |
| 12000 F | 0.98 |
THERMAL CONDUCTIVITY AND ACOUSTIC
THERMAL CONDUCTIVITY (K –FACTOR )
| Temp | PARK DV 500 K |
|---|---|
| 2500 F | 0.18 |
| 5000 F | 0.60 |
| 10000 F | 1.00 |
| 25000 F | 1.16 |
QUALITY MANAGEMENT
- Sound infrastructure equipped with modern tools and machinery
- Stringent quality process is overseen by expert examiners
- Experienced team with in-depth knowledge about DV 500 K SILICA BLANKET
